Apex Group is providing the complete solution for Internet and Solar including the range of Solar panel, Hybrid Solar Invertors, UPS and Solar Charge controllers and Solar batteries to energize our internet and power needs. Solar PV system is very reliable and clean source of electricity that can suit a wide range of applications such as residence, industry, agriculture, lives etc.
Solar Power Pack
Solar power packs are designed to provide electricity in homes/Industries. Today we need continuous and regular access to power for various needs. Every solar PV panel connected in the array generates electricity by converting solar radiation into electrical energy.
This electricity generated from the array of panels is transmitted to a central controller called (PCU/Solar Hybrid Invertor) which is connected to Battery bank through which the electric load is connected to get desired electric output.
| Solar Panel | Solar Hybrid UPS/PCU | Battery | Power Pack | Subsidised | Subsidy |
| ApexGreen/ 2 Yrs | ApexGreen/ 2 Yrs | Exide/ 5 Yrs | Price | Price | Amount |
| 200 | 650 VA/ 12 V | 100 AH*1 | 36400 | 28000 | 8400 |
| 300 | 850 VA/ 12 V | 100 AH*1 | 45500 | 35000 | 10500 |
| 500 | 1450 VA/ 24 V | 100 AH*1 | 74750 | 57500 | 17250 |
| 1000 | 2000 VA/ 24 V | 150 AH*2 | 130000 | 100000 | 30000 |
| 2000 | 2.5 KVA/ 48 V | 150 AH*4 | 247000 | 190000 | 57000 |
| 3000 | 3.5 KVA/ 48 V | 150 AH*4 | 325000 | 250000 | 75000 |
| 4000 | 5.0 KVA/ 96 V | 150 AH*8 | 507000 | 390000 | 117000 |
| 5000 | 7.5 KVA/ 120 V | 150 AH*10 | 650000 | 500000 | 150000 |
| 7500 | 10.0 KVA/ 120 V | 150 AH*10 | 861250 | 662500 | 198750 |
| 10000 | 15.0 KVA/ 120 V | 150 AH*20 | 1332500 | 1025000 | 307500 |
* Installation and freight charges extra.
Apex Solar Hybrid PCU
Apex Power Conditioning unit (PCU) is an integrated system consisting of a solar charge controller, inverter and a Grid charger. It provides the facility to charge the battery bank through either a Solar or Grid/DG set. The PCU continuously monitors the state of battery voltage, solar power output and the load. Once the batteries are charged to the preset level, the ApexGreen Solar Power Conditioning unit cuts off the Grid/DG Power from the system and Running/feeding the loads from the Solar Power+battery bank. After the battery gets discharged at certain level, the mains takes over charging as well as the load is fed through mains only. This way solar energy will be used first on priority and mains energy will be utilized only after the solar energy is fully exhausted.

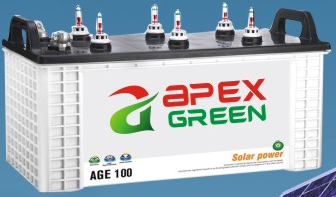

Apex Solar Battery
ApexGreen providing the Solar C-10 Batteries with 5 Years Warranty with Slow charging and Slow discharging feature for great reliability on solar operation
Apex Solar Panels
ApexGreen Energy Private Limited manufactures TUV approved PV modules ranging from 3Wp to 300Wp with an with 25 Years Performance warranty
| Power (Pmax) in Watts | 40 | 75 | 100 | 150 | 150 | 250 | 300 |
| Technical Specification | AN-40/12 | AN-75/12 | AN-100/12 | AN-150/12 | AN-150/24 | AN-250/24 | AN-300/24 |
| Short Circuit Current (Isc) in Amps | 2.54 | 4.76 | 6.35 | 9.52 | 4.65 | 9.25
60 Cell |
9.30
72 Cell |
| Voltage at Maximum Power (Vmp) in Volts | 17 | 17 | 17 | 17 | 35 | 29 | 35 |
| Current at maximum Power (Imp) in Amps | 2.35 | 4.41 | 5.88 | 8.82 | 4.29 | 8.82
60 Cell |
8.57 |
Apex Solar Charge Controllers
A majority of Indian homes / offices already have inverters installed in them. But, due to insufficient grid electricity supply, especially during summers, the batteries do not get fully charged. A solar charge controller helps in charging battery using solar energy collected by Solar panels. MPPT Charge controller generates approximately 10% – 25% more power as compared to PWM charge controller
PWM charge controller 12V/24V auto select 48V, 96V, 120V, 180V, 192V
MPPT charge controller provides 12V/24V auto select for single/double battery
4 Stage battery charging – Deep discharge / Boost / Absorption / Trickle charging mode
Protections – Battery over charge, Reverse polarity, Temp. compensated charging
Solar Water Heaters
Solar thermal water heating systems use the sun’s radiation to heat water — for domestic use, swimming pools and more. A typical direct solar thermal system consists of a collector, pipes and an insulated tank.
How Solar Water Heater Works
1 When the sun’s rays fall on a solar water heater collector, made of either an Evacuated Vacuum Tube system (EVT) the solar radiation heats up the water present in glass tubes (in EVT) due to high transmittance of the covering glass medium.
2 The heated water, now less dense, rises in the various tubes eventually reaching the tank at the top.
3 The relatively colder and denser water in the tank descends into the tubes, in turn getting heated — this cycle continues. The Thermosiphon effect ensures the movement of hot water upwards into the tank because of difference in density, eliminating the need for an external pump. The insulated tank ensures that the hot water remains hot for a long time.
Solar Street Light
Solar streetlight is a stand-alone solar system consisting of a pole, battery bank, photovoltaic module and LED or CFL luminaires. Solar Street light up streets, highways, yards, compounds, parks, boundary walls, car parking areas, military and civilian security installations, airports, ports or indeed, any public space. During the day, the solar panel converts sunlight into electricity, which is then stored in the re-chargeable battery. At night, the light turns on automatically using the electricity stored during the day
Solar Water Pump
A solar water pump has a solar PV panel which generates current by converting solar radiation to electrical energy This electrical energy is controlled, tuned and directed by the inbuilt controller in DC Pumps or through the Variable Frequency Driver(VFD) in AC Pumps and enables the connected pump (may be submersible or surface) to draw water and feed the delivery pipelines.
